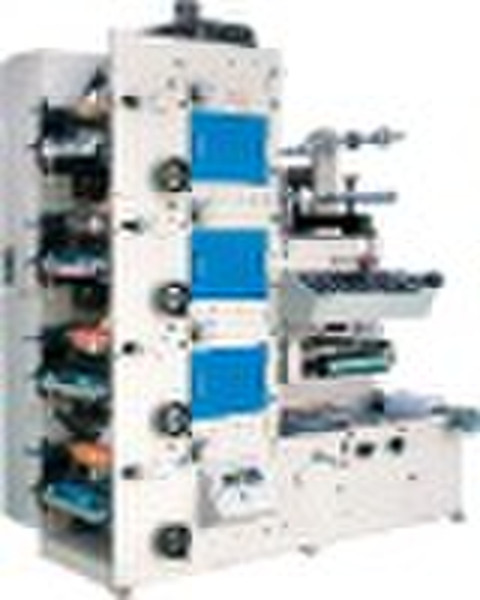

YR--4 Colors Flexographic Printing Machine

Flexographic Printing Machine Performance characteristics: 1.Main motor adopts imported frequency stepless speed regulator. 2.Unwinding, traction and rewinding are controlled by magnetic powder arrester, clutch and tension inspector. Tension controller is automatic type. 3.Machine adopts ceramic veins roller, which is characterized by wearable,rust-resistant and long using life, etc. It can improve the printingefficiency. 4.printing unit adopt plate register function, each veins roller can printindependently, without effecting others when leave it alone. 5.Each printing unit collocated with IR dryer, the UV dryer is optional. 6.The ink roller can break away automatically when machine stops, and it still run in a low speed avoid the ink dry or asymmetric. 7.Unwinding and rewinding shaft adopt air shaft, it's convenient to changeload and unload the material. 8.From material-feeding, printing, drying, glazing, laminating, molding,die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wideprinting range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note,paperboard and label printing factories. Suitable material Roll material such as paper, plastic, film, etc. Printing colors 1-4 (colors) Printing width 320mm Printing length 142-320mm Machine speed 70m/min Printing speed 65m/min Overprint precision ±0.1mm Unwinding diameter φ600mm Rewinding diameter φ500mm Unwinding diameter of lamination φ210mm
